Engine: Cummins
Alternator: Stamford
Control Panel: Deep Sea 6020
Silent Canopied: Yes.
Battery Charger: Yes
Engine Heater: Yes
Bunded Base Fuel Tank: Yes

Model

1103A-33TG1

Engine Power Output

at rated rpm

kWm

46.5

HP

62.3

Aspiration and Cooling

Turbocharged

Total Displacement

Litre

3.3

No. of Cylinders and Build

3 – Inline

Engine Speed

rpm

1500

Bore and Stroke

mmxmm

105×127

Compression Ratio

17.25:1

Governor

Mechanical

Fuel Consumption at full load

L/hr

10.7

Fuel Tank Capacity

Litre

100

Oil Capacity

Litre

8.3

Coolant Capacity

Litre

10.2

Radiator Cooling Air

m³/min

53

Air Intake – Engine

m³/min

3.1

Exhaust Gas Flow

m³/min

7.7

Rated voltage(V):220-240
Rated frequency(Hz):50
Max.output(kW):0.8
Rated output(kW):0.65
Rated speed(rpm):3000
Engine:2 stroke
Displacement(ml):63
Cooling system:Air-cooled
Starting system:Recoil
Aluminum wire alternator
Fuel tank(L):4.0
Dry weight(Kg):16.5
Packed by carton box

Rated voltage(V):220-240

Rated frequency(Hz):50

Phase:Single

Max.output(kW):11

Rated output(kW):10.0

Rated speed(rpm):1500

Engine:Diesel,4 cylinder

Displacement(L):1.809

Fuel tank:36L

Alternator:Brushless

Copper coil alternator

Starting system:Electric

Cooling system:Water

Control system:LCD SmartGen

Silent type diesel generator

Dry weight(Kg):700

Packed by carton box

Rated voltage(V):220-240/380-415

Rated frequency(Hz):50

Phase:Three

Max output(kW):11.0 @380-415V

Rated output(kW): [email protected]

Max output(kW):3.5 @220-240V

Rated output(kW):3.0 @220-240V

With ATS function

Rated speed(rpm):1500

Engine:Diesel,4 cylinder

Displacement(L):1.809

Fuel tank:36L

Alternator:Brushless

Copper coil alternator

Starting system:Electric

Cooling system:Water

Control system:LCD SmartGen

Silent type diesel generator

Dry weight(Kg):700

Packed by carton box

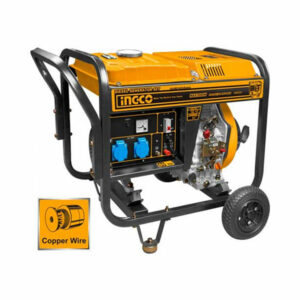

Rated voltage(V):220-240

Rated frequency(Hz):50

Phase:Single

Max.output(kW):3.0

Rated output(kW):2.8

Rated speed(rpm):3000

Engine:Diesel 5.7HP

Displacement(ml):296

Cooling system:Air-cooled

Starting system:Recoil

Copper coil alternator

Fuel tank(L):15

Dry weight(Kg):67

With 1 set auxiliary handle and wheels

Packed by carton box

Rated voltage(V):220-240

Rated frequency(Hz):50

Max.output(kW):3.5

Rated output(kW):2.8

Rated speed(rpm):3000

Engine:4 stroke,OHV

Displacement(ml):208

Cooling system:Air-cooled

Ignition system:T.C.I

Starting system:Recoil

Copper wire alternator

Fuel tank(L):15

Dry weight(Kg):42

Packed by carton box

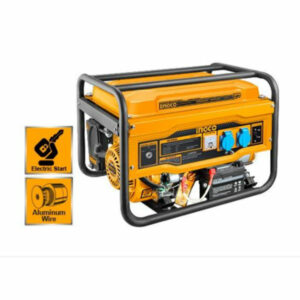

Rated voltage(V):220-240

Rated frequency(Hz):50

Max.output(kW):3.5

Rated output(kW):2.8

Rated speed(rpm):3000

Engine:4 stroke,OHV

Displacement(ml):208

Cooling system:Air-cooled

Ignition system:T.C.I

Starting system:Recoil+Electric

Copper wire alternator

Fuel tank(L):15

Dry weight(Kg):51

With 1 set auxiliary handle and wheels

Packed by carton box

Rated voltage(V):220-240/380-415
Rated frequency(Hz):50
Phase:Three
Max output(kW):33.0 @380-415V
Rated output(kW):[email protected]
Max output(kW):11.0 @220-240V
Rated output(kW):[email protected]
With ATS function
Rated speed(rpm):1500
Engine:Diesel,4 cylinder
Displacement(L):3.62
Fuel tank:50L
Alternator:Brushless
Copper coil alternator
Starting system:Electric
Cooling system:Water
Control system:LCD SmartGen
Silent type diesel generator
Dry weight(Kg):1000
Packed by carton box

C(V):22
Rated frequency(Hz):50
Max.output(kW):2.8
Rated output(kW):2.5Rated
Rated speed(rpm):3000
Engine:4 stroke,OHV
Displacement(ml):210CC
Cooling system:Air-cooled
Ignition system:T.C.I
Starting system:Recoil
Aluminum wire alternator
Fuel tank(L):15
Dry weight(Kg):42
Packed by carton box

Rated voltage(V):220-240

Rated frequency(Hz):50

Max output(kW):2.8

Rated output(kW):2.5

Rated speed(rpm):3000

Engine:4 stroke,OHV

Displacement(ml):210

Cooling system:Air-cooled

Ignition system:T.C.I

Starting system:Recoil+Electric

Aluminum wire alternator

Fuel tank(L):15

Dry weight(Kg):46.5

Packed by carton box
